Målemaskin fra Werth gir  deg kompromissløs nøyaktighet!

Utvalget spenner seg fra klassiske profilprojektorer med standard løsninger for optisk 2D- og 3D-koordinat måling, til høyt utviklede målemaskiner utstyrt med flere sensorer som optikk, laser, tastere og x-ray computertomografi.

Werth QuickInspect

Fast Measurement in the Field Of View of the Sensor

Design: Benchtop measuring machine with image processing sensor

Fields of View: 8 mm x 6 mm, 20 mm x 15 mm, 40 mm x 30 mm, 80 mm x 60 mm, 230 mm x 180 mm (special ranges upon request)

Available Measuring Sensor: Werth image processing sensor with high resolution CCD camera

Applications: Profiles, seals, cables, watch industry, etc..

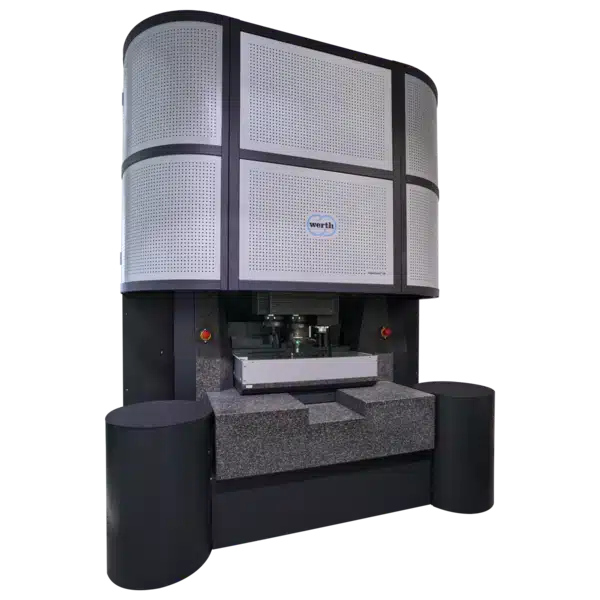

Werth VideoCheck® UA

Measurement in the Submicron Range – most accurate multi-sensor coordinate measuring machine worldwide

Design Ultra accurate fixed bridge multi-sensor CMM. Length measuring deviations lower than 0.3 µm.
Measuring Range X=400mm; Y=400mm; Z=250mm
Available Measuring Sensors High-precision Werth image processing (IP) video sensor,Werth chromatic distance sensor, touch trigger and dynamic scanning probes, Werth Fiber Probe, etc.
Applications 3D micro components, miniature gears, gages and length standards, etc.

Werth ScopeCheck® MB

The multi-sensor coordinate measuring machine for flexible measurement and large measuring ranges

Design: 3D-CNC multi-sensor coordinate measuring machine with a moving bridge design for large and heavy workpieces.
Measuring Range X=500-2000mm; Y=600-3000mm; Z=450-1500mm
Available Measuring Sensors Werth image processing (IP) video sensor, Werth 3D-Patch, Werth Laser sensor, touch trigger sensor and dynamic probes, Werth Fiber Probe, Werth Contour Probe,Werth IP 40 T (compact optical sensor head), etc.
Application Large components from the automotive-. machine building and toolmaking industries, etc.

Målemaskin Werth

Innovativ utvikling av optisk bildebehandling og programvare gjør Werth Messtechnik GmbH til verdensledende innen multisensorteknologi. Dette gjenspeiler seg i en rekke verdensnyheter og patenterte løsninger. Se hva Werth kan tilby deg av måletekniske løsninger.

Målemaskiner fra Werth - gå til Werths egne sider for komplett info.
